When a layer of the LeafCarrier10 has been replaced the LeafCarriers controller needs the information of this new layer. This is done by reconfigure the layers. Follow the instructions in the video below or the next 6 steps in the description below.

Only want to configure one layer? Follow this guide






1. In the app connect to your LeafCarrier10

2. Tab the "Settings" icon in the top right corner

Afbeelding met tekst

Automatisch gegenereerde beschrijving



3. Tab Reconfigure Leaf Layers

Afbeelding met tekst

Automatisch gegenereerde beschrijving



4. Tab “Yes” to continue

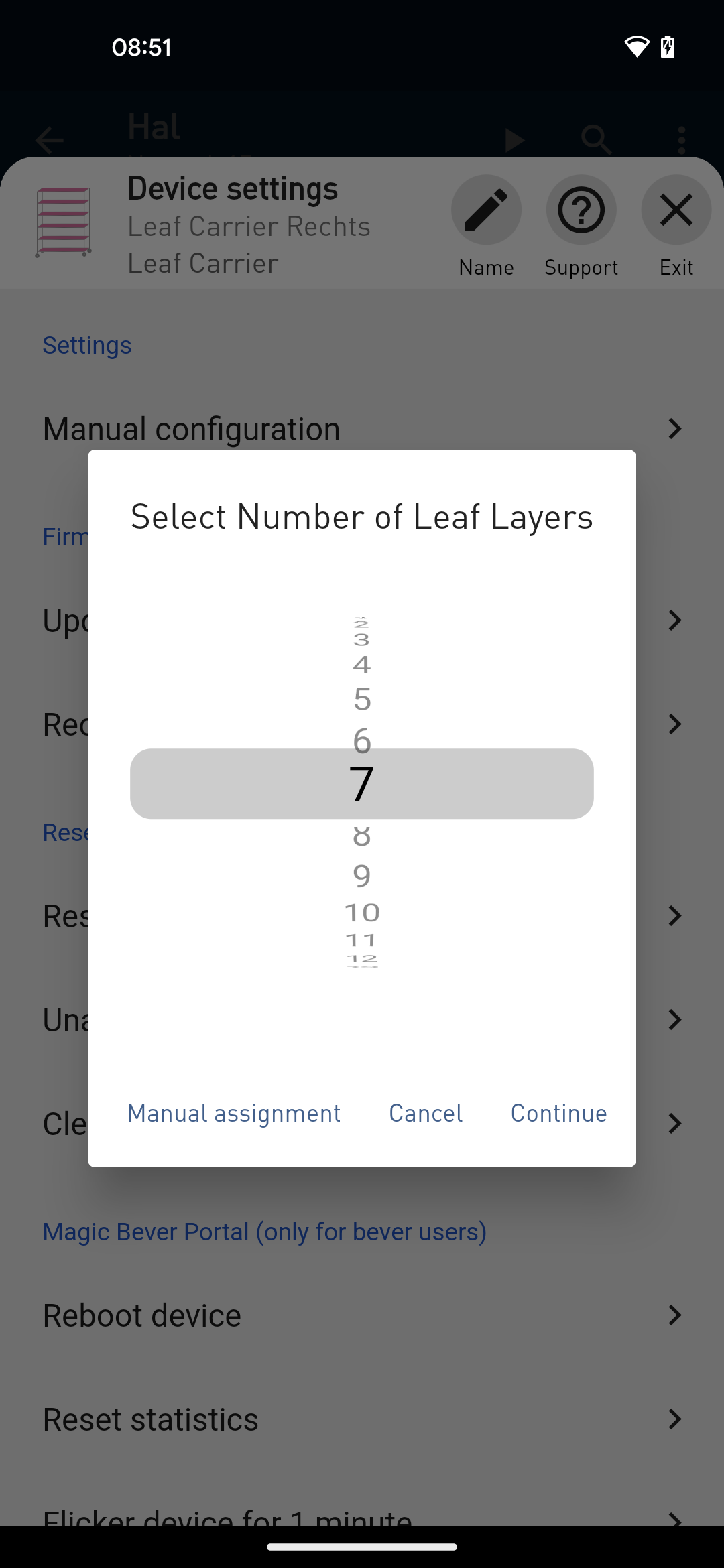

5. Select total the number of layers of your LeafCarrier (normally 7, 10 or 15)

6. Scan with the app one by one the barcodes on the labels of the individual layers. The labels are located on the bottom of the layer near the cable entry.

7. Apply the new layers. The app will verify the new settings.

8. follow the instructions given by the app to restart your LeafCarrier10
